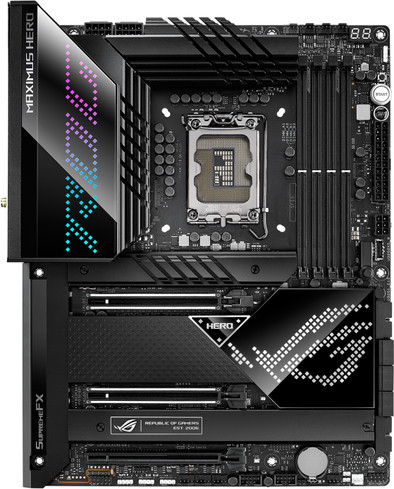

Asus ROG MAXIMUS Z690 HERO
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our motherboard expert
Note: this motherboard only works with 12th generation Intel processors, with a 1700 socket.
Start with a new generation in terms of gaming with the ASUS ROG MAXIMUS Z690 HERO. This ATX motherboard has an LGA1700 socket and Z690 chipset, so it's made for use with 12th generation Intel processors. This motherboard has room for up to 128GB RAM, spread over 4 DDR5 slots. Are you planning on using this setup for a long time? Enjoy the PCIe 5.0 support, which you can find in the PCIe x16 slots and in the M.2 slots. This makes it very future-proof and it's easy to add a PCIe 5.0 SSD if you want more storage, Are your feet getting too hot? No worries, the I/O Shield is made out of reinforced aluminum and the motherboard has multiple heatsinks for a fast disposal of hot air. This way, your components remain properly cooled and you keep your focus on your game. For internet, you have a 2.5GBit Ethernet port for a super fast wired connection. If you don't want wired internet, you can use the built-in WiFi 6E of the motherboard, with a speed up to 2.4Gbps. In addition, this motherboard provides various ports for a fast connection between your computer and accessories. The shield has 2 Thunderbolt 4 ports and 7 USB 3.2 ports. Enough choice, if you want to connect a lot of accessories.
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
|---|---|---|
Motherboard chipset | Intel Z690 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 5 | |
PCI Express x16 slots | 3 | |
Built-in WiFi | ||
Support for overclocking |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 907465 |
|---|---|
Manufacturer code | 90MB18E0-M0EAY0 |
Brand | ASUS |
Warranty | 2 years |
Processing of your defect | Via Coolblue |
Compatible with Windows version | Windows 10, Windows 11 | |
|---|---|---|
Revision | 1.0 | |
Form factor (motherboards) | ATX |
Chipset brand | Intel | |
|---|---|---|
Motherboard chipset | Intel Z690 | |
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Memory type | DDR5 | |
Memory speed | 4800 MHz | |
Maximum memory speed | 6400 MHz | |
Maximum internal memory | 128 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 0 | |
|---|---|---|
PCI Express x16 slots | 3 | |
Number of PCIe 5.0 (x16/x8) connectors | 2 | |
Number of PCIe 4.0 (x16/x4) connectors | 1 |
Supported M.2 SSD formats | 22x80mm | |
|---|---|---|
Nubmber of M.2 connectors | 5 | |
Number of cooled M.2 SSD slots | 5 | |
Number of M-key (PCIe 5.0) slots | 1 | |
Number of M-key (PCIe 4.0 + SATA III) slots | 1 | |
Number of M-key (PCIe 4.0) slots | 2 | |
Number of SATA connectors | 6 |
Built-in WiFi | ||
|---|---|---|
WiFi standards | Wireless AX (WiFi 6E) | |
Bluetooth | ||
Bluetooth version | 5.2 | |
Connect to an external speaker |
DisplayPort connector | |
|---|---|
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
Number of Female Thunderbolt 4 (USB-C) ports | 2 |
DVI connector | |
VGA connector |
USB-C ports back panel | |
|---|---|
Number of USB-C 3.2 Gen 2 (10Gbps) ports back panel | 1 |
Number of USB-C 4.0 (40Gbps) ports back panel | 2 |
USB-A ports back panel | |
Number of USB-A 2.0 (480Mbps) ports back panel | 2 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 6 |
Headphone jack | ||
|---|---|---|
Microphone connector | ||
Number of microphone connectors | 1 | |
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Number of digital optical inputs | 0 | |
Number of digital optical outputs | 1 | |
Audio processor | ALC4082 | |
Number of audio channels | 8 | |
Number of subwoofer channels | 0 |
Fan headers | |
|---|---|
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin CPU optional headers | 1 |
Number of 4-pin system fan headers | 4 |
Number of 4-pin CPU water cooling fan headers | 1 |
Type of power connector for motherboard | 24-pin ATX connector |
Type of power connector for CPU | 8+8 pin ATX connector |
RGB headers | |
Number of RGB headers | 3 |
USB headers on the motherboard | |
Number of USB 2.0 (480Mbps) headers on the motherboard | 2 |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 2 |
USB-A ports on the motherboard | 0 |
|---|---|
BIOS flash button on the motherboard | |
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting | ||
|---|---|---|
Number of colors lighting | Multicolor | |
Color lighting | RGB | |
Zones separately lit | ||
Lighting connectable with peripherals | ||
Zone lighting | Logo |
