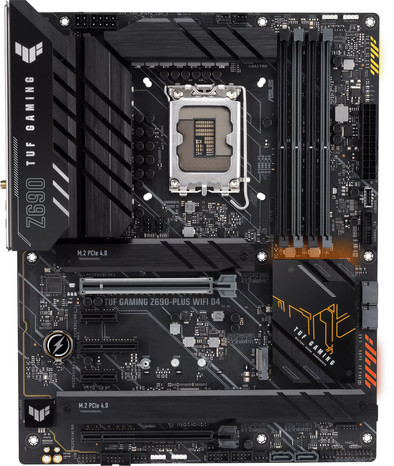

Asus TUF GAMING Z690-PLUS WIFI D4
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our motherboard expert
Note: this motherboard only works with 12th generation Intel processors with a 1700 socket.
Give your gaming build an upgrade with the Asus TUF GAMING Z690-PLUS WIFI D4. This ATX motherboard has the LGA1700 socket and Z690 chipset for use with a 12th generation Intel processor. With 3 M.1 PCIe 4.0 SSD slots in total, you can easily create a super fast storage space. Combine this with 4 DDR4 RAM slots with a maximum capacity of 128GB, and your computer boots within a few second. This way, you're ready in the lobby right away and can start games fast. In addition, the motherboard has a PCIe slot, so the motherboard is extra future-proof. The motherboard has multiple heatsinks for cooling, which are both near the processor and near the M.2 SSD sots. This way, your components are cooled well and they last longer. For your internet connection, you can get maximum 2.4Gbps via both the LAN port and the built-in WiFi 6 module. This way, you're always sure of a fast internet connection.
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
|---|---|---|
Motherboard chipset | Intel Z690 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 4 | |
PCI Express x16 slots | 2 | |
Built-in WiFi | ||
Support for overclocking |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 907469 |
|---|---|
Manufacturer code | 90MB18V0-M0EAY0 |
Brand | ASUS |
Warranty | 2 years |
Processing of your defect | Via Coolblue |
Compatible with Windows version | Windows 10, Windows 11 | |
|---|---|---|
Revision | 1.0 | |
Suitable casings | Full Tower, Mid Tower | |
Form factor (motherboards) | ATX |
Chipset brand | Intel | |
|---|---|---|
Motherboard chipset | Intel Z690 | |
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Memory type | DDR4 | |
Memory speed | 2133 MHz | |
Maximum memory speed | 5333 MHz | |
Maximum internal memory | 128 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 2 | |
|---|---|---|
Version PCIe x1 slots | PCIe 3.0 | |
PCI Express x16 slots | 2 | |
Number of PCIe 5.0 (x16/x16) connectors | 1 |
Supported M.2 SSD formats | 22x80mm | |
|---|---|---|
Nubmber of M.2 connectors | 4 | |
Number of cooled M.2 SSD slots | 3 | |
Number of M-key (PCIe 4.0 + SATA III) slots | 1 | |
Number of M-key (PCIe 4.0) slots | 3 | |
Number of SATA connectors | 4 |
Built-in WiFi | ||
|---|---|---|
WiFi standards | Wireless AX (WiFi 6) | |
Bluetooth | ||
Bluetooth version | 5.2 |
DisplayPort connector | |
|---|---|
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
DVI connector | |
VGA connector |
USB-C ports back panel | |
|---|---|
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 |
USB-A ports back panel | |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 4 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 2 |
Headphone jack | ||
|---|---|---|
Microphone connector | ||
Number of microphone connectors | 1 | |
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | ALC4080 |
Fan headers | |
|---|---|
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin CPU optional headers | 1 |
Number of 4-pin system fan headers | 5 |
Number of 4-pin CPU water cooling fan headers | 1 |
Type of power connector for motherboard | 24-pin ATX connector |
Type of power connector for CPU | 8+8 pin ATX connector |
RGB headers | |
Number of RGB headers | 4 |
USB headers on the motherboard | |
Number of USB 2.0 (480Mbps) headers on the motherboard | 2 |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 1 |
USB-A ports on the motherboard | 0 |
|---|---|
BIOS flash button on the motherboard | |
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting | ||
|---|---|---|
Number of colors lighting | Multicolor | |
Color lighting | RGB | |
Zones separately lit | ||
Lighting connectable with peripherals | ||
Zone lighting | Side(s) |
