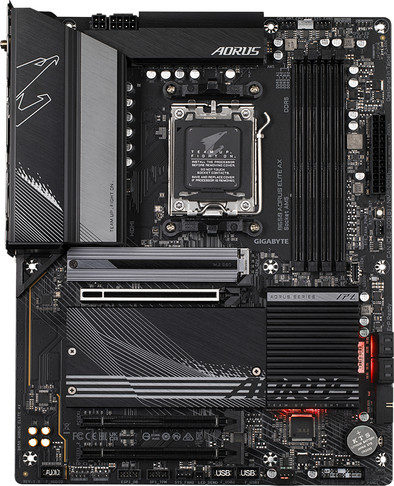

Gigabyte B650 AORUS ELITE AX

Show all accessories

Gigabyte B650 AORUS ELITE AX is no longer available

Never available again

View alternatives in the sidebar

Product information
Accessories
Insurance
Specifications

Product information

Key specs

	Socket (CPU)	AM5 (7th gen AMD)
	Motherboard chipset	AMD B650
	Form factor (motherboards)	ATX
	Total number of RAM slots	4
	Nubmber of M.2 connectors	3
	PCI Express x16 slots	3
	Built-in WiFi
	Support for overclocking

Show all specifications

Pros and cons

According to our motherboard expert

You can install AMD Ryzen 7000 processors in this motherboard thanks to the AM5 socket.
This motherboard is very future-proof thanks to DDR5 RAM support.
The AORUS ELITE AX has room for 3 M.2 SSDs, so you can create fast storage.
The socket isn't suitable for AMD processors older than the 7000 series.
This motherboard doesn't have PCIe 5.0 support which would make it extra future-proof.

Description

Note:this motherboard only works with AMD Ryzen 7000 processors, with an AM5 socket.

Prepare your gaming desktop for the next step with the Gigabyte B650 AORUS ELITE AX. This ATX motherboard has the AM5 socket and B650 chipset, specifically for use with the AMD Ryzen 7000 processors. You can place up to 128GB DDR5 RAM in the motherboard, with room for 4 modules. This way you can easily create a lightning-fast RAM that's also future-proof. For your storage, you have room for 3 M.2 SSDs, with support up to PCIe 4.0. The thermal design of this motherboard has been specially developed to quickly release the hot air and heat. Examples are a 6 mm heat pipe, an aluminum plate, and various heat sinks. This way, your components and your head can remain cool while you game. Having trouble choosing between wireless and wired internet? Don't worry, both options are powerful enough for a stable internet connection. For example, the 802.11ax WiFi 6E module offers a very strong wireless connection and you can create a super-fast wired connection with the 2.5Gbit Ethernet port. In terms of connection, you have enough options with the HDMI 2.1 and DisplayPort 1.4 ports and various USB 3.2 Gen 2x2 ports, for a fast connection between your computer and accessories.

Tips for using this product

Included by default

Manual(16.77 MB)
I/O shield

Reviews

Rating

5 stars

4 stars

3 stars

2 stars

1 star

Insure your motherboard

Coolblue takes care of everything, from taking out an insurance to repairs
For almost all accidents
More coverage in case of damage than your standard warranty
No deductible

How do I insure my motherboard?

First, add your motherboard to your shopping cart. On the next page, choose the Protection Plan below. You always have a 30-day return window and pay no deductible in case of damage.

2-year Protection Plan
€ 7,99
one-time
3-year Protection Plan
€ 11,99
one-time

Specifications

Product

Product
	Product number	916352
	Manufacturer code	B650 AORUS ELITE AX
	Brand	Gigabyte
	Warranty	3 years
	Processing of your defect	Via Coolblue

General properties

General properties
	Compatible with Windows version	Windows 10, Windows 11
	Revision	1.0
	Suitable casings	Full Tower, Mid Tower
	Form factor (motherboards)	ATX

Chipset properties

Chipset properties
	Chipset brand	AMD
	Motherboard chipset	AMD B650
	Socket (CPU)	AM5 (7th gen AMD)
	Support for overclocking
	Chipset cooler (motherboards)	Passive

RAM properties

RAM properties
	Total number of RAM slots	4
	Memory type	DDR5
	Memory speed	5600 MHz
	Maximum memory speed	6666 MHz
	Maximum internal memory	128 GB
	Number of memory channels	Dual channel (2)

PCIe connectors

PCIe connectors
	PCI Express x1 slots	0
	PCI Express x16 slots	3
	Number of PCIe 4.0 (x16/x16) connectors	1

Storage properties

Storage properties
	Supported M.2 SSD formats	22x80mm
	Nubmber of M.2 connectors	3
	Number of cooled M.2 SSD slots	3
	Number of M-key (PCIe 5.0) slots	1
	Number of M-key (PCIe 4.0) slots	2
	Number of SATA connectors	4

WiFi and Bluetooth properties

WiFi and Bluetooth properties
	Built-in WiFi
	WiFi standards	Wireless A (WiFi 2), Wireless AC (WiFi 5), Wireless AX (WiFi 6), Wireless AXE (WiFi 6E), Wireless B (WiFi 1), Wireless G (WiFi 3), Wireless N (WiFi 4)
	Bluetooth
	Bluetooth version	5.2

Video connections

Video connections
	DisplayPort connector
	Number of Female Standard DisplayPort 1.4 ports	1
	HDMI connector
	Number of Female HDMI type A 2.1 ports	1
	Thunderbolt connector
	DVI connector
	VGA connector

USB connectors

USB connectors
	USB-C ports back panel
	Number of USB-C 3.2 Gen 2 (10Gbps) ports back panel	1
	USB-A ports back panel

Audio and Ethernet connectors

Audio and Ethernet connectors
	Headphone jack
	Microphone connector
	Number of microphone connectors	1
	Ethernet port
	Number of 2.5Gbps Ethernet ports	1
	Digital optical connector
	Audio processor	Realtek Audio Codec

Power connectors

Power connectors
	Fan headers
	Number of 4-pin CPU fan headers	1
	Number of 4-pin CPU optional headers	1
	Number of 4-pin system fan headers	3
	Number of 4-pin CPU water cooling fan headers	1
	Type of power connector for motherboard	24-pin ATX connector
	RGB headers
	Number of RGB headers	4
	USB headers on the motherboard
	Number of USB 2.0 (480Mbps) headers on the motherboard	2
	Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard	1

Other connectors

Other connectors
	USB-A ports on the motherboard	1
	BIOS flash button on the motherboard
	Clear CMOS button on the motherboard
	Power button on the motherboard

RGB lighting

RGB lighting
	RGB lighting
	Number of colors lighting	Multicolor
	Color lighting	RGB
	Lighting connectable with peripherals
