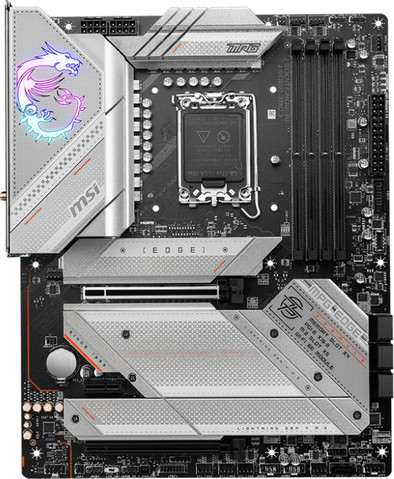

MSI MPG Z790 EDGE WiFi
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our motherboard expert
Note: this motherboard only works with 12th and 13th generation Intel processors with a 1700 socket. In addition, this motherboard only works with DDR5 RAM.
Take control of a new gaming world with the MSI MPG Z790 EDGE WIFI. This ATX motherboard is equipped with the LGA1700 socket and Z790 chipset, for use with the 12th and 13th generation Intel processors. Place up to a total of 128GB DDR5 RAM on this motherboard via the 4 DIMM slots. Do you also want a fast storage space in addition to a large amount of RAM? Don't worry, with a total of 4 M.2 slots you can easily place multiple NVMe SSDs on the motherboard. As part of the Z790 series, this motherboard is suitable for overclocking. The high temperatures involved are no problem, thanks to the many cooling techniques. The M.2 shields prevent overheating and stuttering, and the heatsink reduces the heat around your processor. In addition, this motherboard is extra optimized for water cooling. This way, you can keep your components and your head cool. Not quite sure how you want to connect to the internet? Don't worry, you can create a super-fast internet connection via the 2.5Gbps Ethernet port or the WiFi 6E module. This way, you have a fast and stable connection via both options. You have enough connection options for your accessories on both the front and back panel. With 3 USB-C ports and a total of 17 USB ports, you never have to few ports. You also have the choice between an HDMI 2.1 and DisplayPort 1.4 port. This motherboard is also suitable for a smooth 4K output.
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel), AM5 (7th gen AMD) | |
|---|---|---|
Motherboard chipset | Intel Z790 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 5 | |
PCI Express x16 slots | 2 | |
Built-in WiFi | ||
Support for overclocking |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 917389 |
|---|---|
Manufacturer code | Z790 EDGE WIFI |
Brand | MSI |
Warranty | 3 years |
Processing of your defect | Via Coolblue |
Compatible with Windows version | Windows 10, Windows 11 | |
|---|---|---|
Revision | 1.0 | |
Form factor (motherboards) | ATX |
Chipset brand | Intel | |
|---|---|---|
Motherboard chipset | Intel Z790 | |
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel), AM5 (7th gen AMD) | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Memory type | DDR5 | |
Memory speed | 4800 MHz | |
Maximum memory speed | 7200 MHz | |
Maximum internal memory | 128 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 1 | |
|---|---|---|
Version PCIe x1 slots | PCIe 3.0 | |
PCI Express x16 slots | 2 | |
Number of PCIe 5.0 (x16/x16) connectors | 1 | |
Number of PCIe 4.0 (x16/x4) connectors | 1 |
Supported M.2 SSD formats | 22x80mm | |
|---|---|---|
Nubmber of M.2 connectors | 5 | |
Number of cooled M.2 SSD slots | 5 | |
Number of M-key (PCIe 4.0 + SATA III) slots | 1 | |
Number of M-key (PCIe 4.0) slots | 4 | |
Number of SATA connectors | 7 |
Built-in WiFi | ||
|---|---|---|
WiFi standards | Wireless A (WiFi 2), Wireless AC (WiFi 5), Wireless AX (WiFi 6), Wireless AX (WiFi 6E), Wireless B (WiFi 1), Wireless G (WiFi 3), Wireless N (WiFi 4) | |
Bluetooth | ||
Bluetooth version | 5.2 |
DisplayPort connector | |
|---|---|
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
DVI connector | |
VGA connector |
USB-C ports back panel | |
|---|---|
Number of USB-C 3.2 Gen 2 (10Gbps) ports back panel | 1 |
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 |
USB-A ports back panel | |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 4 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 4 |
Headphone jack | ||
|---|---|---|
Microphone connector | ||
Number of microphone connectors | 1 | |
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | ALC4080 |
Fan headers | |
|---|---|
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin system fan headers | 6 |
Number of 4-pin CPU water cooling fan headers | 1 |
Type of power connector for motherboard | 24-pin ATX connector |
Type of power connector for CPU | 8+8 pin ATX connector |
RGB headers | |
Number of RGB headers | 4 |
USB headers on the motherboard | |
Number of USB 2.0 (480Mbps) headers on the motherboard | 4 |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 2 |
USB-A ports on the motherboard | 6 |
|---|---|
BIOS flash button on the motherboard | |
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting | ||
|---|---|---|
Zones separately lit |
