According to our motherboard expert
Note: this motherboard only works with 12th and 13th generation Intel processors, with a 1700 socket.

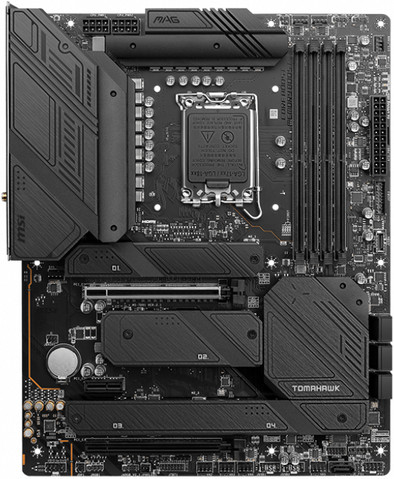

Create a powerful PC build with the MSI MAG Z790 TOMAHAWK WiFi DDR4. This ATX motherboard has an LGA1700 socket and Z790 chipset, so it's made for use with 12th and 13th generation Intel processors. This motherboard offers room for a total of 128GB RAM up to about 4000MHz divided over 4 DDR4 slots. You can also put a PCIe 5.0 SSD in 1 of the 4 M.2 slots on the motherboard and enjoy the extra high speeds. In addition, this motherboard has a reinforced back plate, extra long heatsinks, and thermic pads for a good heat removal. This way, your components remain properly cooled and you keep your focus on the game. Struggling to choose between wired and wireless internet? Choose between an WiFi 6th module via the included antenna, or a 2.5Gbps Ethernet port. It doesn't matter which one you choose, because both options offer a super fast and stable internet connection. In addition, this motherboard provides various ports for a fast connection between your computer and accessories. This motherboard has 2 USB-C ports and multiple USB-A 3.2 Gen 2 ports for a super fast connection with your accessories.
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
Motherboard chipset | Intel Z790 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 4 | |
PCI Express x16 slots | 2 | |
Built-in WiFi | ||
Support for overclocking |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 918232 |
Manufacturer code | 7D91-003R |
Brand | MSI |
Warranty | 2 years |
Processing of your defect | Via Coolblue |
Compatible with Windows version | Windows 10, Windows 11 | |
Revision | 1.0 | |
TPM (Trusted platform module) | ||
Suitable casings | Full Tower, Mid Tower | |
Form factor (motherboards) | ATX |
Chipset brand | Intel | |
Motherboard chipset | Intel Z790 | |
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
Memory type | DDR4 | |
Maximum memory speed | 5333 Hz | |
Maximum internal memory | 128 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 1 | |
Version PCIe x1 slots | PCIe 3.0 | |
PCI Express x16 slots | 2 | |
Number of PCIe 5.0 (x16/x16) connectors | 1 | |
Number of PCIe 4.0 (x16/x4) connectors | 1 |
Nubmber of M.2 connectors | 4 | |
Number of cooled M.2 SSD slots | 0 | |
Number of M-key (PCIe 4.0) slots | 4 | |
Number of SATA connectors | 7 |
Built-in WiFi | ||
WiFi standards | Wireless A (WiFi 2), Wireless AC (WiFi 5), Wireless AX (WiFi 6), Wireless AXE (WiFi 6E), Wireless B (WiFi 1), Wireless G (WiFi 3), Wireless N (WiFi 4) | |
Bluetooth | ||
Bluetooth version | 5.3 |
DisplayPort connector | |
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
DVI connector | |
VGA connector |
USB-C ports back panel | |
Number of USB-C 3.2 Gen 2 (10Gbps) ports back panel | 1 |
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 |
USB-A ports back panel | |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 4 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 4 |
Headphone jack | ||
Microphone connector | ||
Number of microphone connectors | 3 | |
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | ALC4080 |
Fan headers | |
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin system fan headers | 6 |
Number of 4-pin CPU water cooling fan headers | 1 |
RGB headers | |
Number of RGB headers | 4 |
USB headers on the motherboard | |
Number of USB 2.0 (480Mbps) headers on the motherboard | 4 |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 2 |
USB-A ports on the motherboard | 8 |
BIOS flash button on the motherboard | |
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting |
