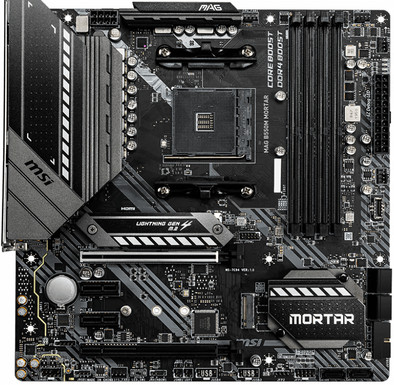

MSI MAG B550M MORTAR
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our motherboard expert
Note: this motherboard only works with 3rd and 5th generation AMD Ryzen processors with an AM4 socket.
Provide your micro-ATX PC with a powerful and new impulse with the MSI MAG B550M MORTAR. This motherboard has the AM4 socket and B550M chipset for use in combination with a 3rd or 5th generation AMD Ryzen processor. You can create up to 128GB RAM spread out over 4 DDR4 memory slots. In addition, you have room for 2 M.2 NVMe SSDs that you install in the PCIe 4.0 or PCIe 3.0 slots. As a result, long loading times are a thing of the past and you enter the lobby of your game right away. Are you worried about things like overheating? Don't worry, the extended heatsinks, software for fans, and support for a waterpump offer enough solutions. Thanks to this, your components stay properly cooled and you won't run into problems soon. The 2.5GbE LAN port provides an extra fast and stable wired internet connection. Games run faster, streams play more smoothly, and you get to enjoy a constant connection in general.
Socket (CPU) | AM4 (3rd gen AMD), AM4 (5th gen AMD) | |
|---|---|---|
Motherboard chipset | AMD B550 | |
Form factor (motherboards) | MicroATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 2 | |
PCI Express x16 slots | 2 | |
Built-in WiFi | ||
Support for overclocking |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 918236 |
|---|---|
Manufacturer code | 7C94-006R |
Brand | MSI |
Warranty | 2 years |
Processing of your defect | Via Coolblue |
Compatible with Windows version | Windows 10 | |
|---|---|---|
Revision | 1.0 | |
TPM (Trusted platform module) | ||
Suitable casings | Full Tower, Mid Tower, Mini Tower | |
Form factor (motherboards) | MicroATX |
Chipset brand | AMD | |
|---|---|---|
Motherboard chipset | AMD B550 | |
Socket (CPU) | AM4 (3rd gen AMD), AM4 (5th gen AMD) | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Memory type | DDR4 | |
Maximum memory speed | 4400 Hz | |
Maximum internal memory | 128 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 2 | |
|---|---|---|
Version PCIe x1 slots | PCIe 3.0 | |
PCI Express x16 slots | 2 | |
Number of PCIe 4.0 (x16/x16) connectors | 1 |
Nubmber of M.2 connectors | 2 | |
|---|---|---|
Number of cooled M.2 SSD slots | 0 | |
Number of M-key (PCIe 4.0) slots | 1 | |
Number of SATA connectors | 6 |
Built-in WiFi | ||
|---|---|---|
Bluetooth |
DisplayPort connector | |
|---|---|
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
DVI connector | |
VGA connector |
USB-C ports back panel | |
|---|---|
Number of USB-C 3.2 Gen 2 (10Gbps) ports back panel | 1 |
USB-A ports back panel | |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 2 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 1 |
Headphone jack | ||
|---|---|---|
Microphone connector | ||
Number of microphone connectors | 3 | |
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | Realtek ALC1200 |
Fan headers | |
|---|---|
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin system fan headers | 3 |
Number of 4-pin CPU water cooling fan headers | 1 |
RGB headers | |
Number of RGB headers | 3 |
USB headers on the motherboard | |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 3 |
USB-A ports on the motherboard | 3 |
|---|---|
BIOS flash button on the motherboard | |
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting |
|---|
