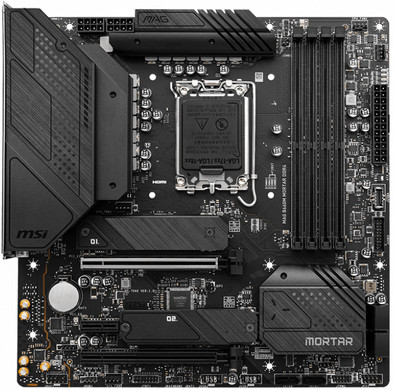

MSI MAG B660M MORTAR DDR4
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our motherboard expert
Note: this motherboard only works with 12th and 13th generation Intel processors with a 1700 socket.
Provide your micro-ATX PC with a powerful and new impulse with the MSI MAG B660M MORTAR DDR4. This motherboard has the LGA1700 socket and B660M chipset for use in combination with a 12th or 13th generation Intel processor. You can create up to 128GB RAM spread out over 4 DDR4 memory slots. In addition, you have room for 2 M.2 NVMe SSDs that you install in the PCIe 4.0 slots. As a result, long loading times are a thing of the past and you enter the lobby of your game right away. Are you worried about things like overheating? Don't worry, this motherboard has heatsinks, M.2 shields, and AI cooling. This software uses an algorithm based on the temperature, which is how it controls the connected fans. It works harder with high temperatures and the fans go into idle mode with lower temperatures. The 2.5GbE LAN port provides an extra fast and stable wired internet connection. Games run faster, streams play more smoothly, and you get to enjoy a constant connection in general. This motherboard also offers various ports for a fast connection between your computer and its accessories. For example, the motherboard has a USB-C port and multiple USB-A 3.2 Gen 2 ports for a very fast connection with your accessories.
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
Motherboard chipset | Intel B660 | |
Form factor (motherboards) | MicroATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 2 | |
PCI Express x16 slots | 2 | |
Built-in WiFi | ||
Support for overclocking |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 918237 |
Manufacturer code | 7D42-001R |
Brand | MSI |
Warranty | 2 years |
Processing of your defect | Via Coolblue |
Compatible with Windows version | Windows 10, Windows 11 | |
Revision | 1.0 | |
TPM (Trusted platform module) | ||
Suitable casings | Full Tower, Mid Tower, Mini Tower | |
Form factor (motherboards) | MicroATX |
Chipset brand | Intel | |
Motherboard chipset | Intel B660 | |
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
Memory type | DDR4 | |
Maximum memory speed | 4800 Hz | |
Maximum internal memory | 128 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 1 | |
Version PCIe x1 slots | PCIe 3.0 | |
PCI Express x16 slots | 2 | |
Number of PCIe 4.0 (x16/x16) connectors | 1 |
Nubmber of M.2 connectors | 2 | |
Number of M-key (PCIe 4.0) slots | 2 | |
Number of SATA connectors | 6 |
Built-in WiFi | ||
Bluetooth |
DisplayPort connector | |
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
DVI connector | |
VGA connector |
USB-C ports back panel | |
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 |
USB-A ports back panel |
Headphone jack | ||
Microphone connector | ||
Number of microphone connectors | 3 | |
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | Realtek ALC1200 |
Fan headers | |
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin system fan headers | 2 |
Number of 4-pin CPU water cooling fan headers | 1 |
RGB headers | |
Number of RGB headers | 3 |
USB headers on the motherboard | |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 2 |
USB-A ports on the motherboard | 5 |
BIOS flash button on the motherboard | |
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting |
