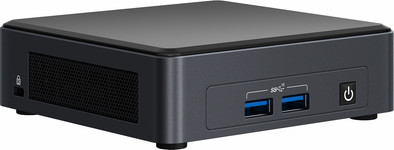

Intel NUC 11 Pro Kit i5 vPro Tiger Canyon NUC11TNKV5
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
Product family | Tiger Canyon | |
|---|---|---|
Processor family | Core i5 vPro | |
Barebone model | Slim kit | |
Built-in WiFi | ||
Memory type | DDR4 | |
Maximum internal memory | 64 GB | |
Nubmber of M.2 connectors | 1 | |
Number of HDMI connectors | 2 |
According to our barebone expert
The Intel NUC 11 Pro Kit vPro i5 Tiger Canyon NUC11TNHV5 is a barebone mini computer that's suitable for your daily work and photo editing. Think of writing reports in Microsoft Word or creating advertisements in Adobe Photoshop, for example. This computer has an 11th generation Intel Core i5 processor and offers space for 64GB RAM with a 3200MHz maximum clock speed. Is it hard to choose between a HDD and SSD? Don't worry, this barebone offers 3 connectors for your 2.5-inch or M.2 drive. That way, you have enough space for a HDD with a lot of storage and an SSD that loads your files and programs fast. Connect the mini PC with up to 4 screens at the same time via the HDMI, DisplayPort, or Thunderbolt 3 connectors. In addition, you have enough space for the dongles of a wireless mouse and keyboard via the various USB-A ports. Don't want the barebone on your desk? Mount it behind the monitor with a VESA mount. This barebone supports Windows 10 x64, Windows 10 IoT Enterprise, RedHat EL Linux, and Ubuntu 20.04 LTS. In addition, the Intel vPro platform offers extra control and security functions for the processor in the barebone. That way, you're never bothered by hackers or other snoopers.
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 922626 | |
|---|---|---|
Manufacturer code | BNUC11TNKV50002 | |
Brand | Intel | |
Warranty | 2 years | |
Processing of your defect | Via Coolblue |
Product family | Tiger Canyon | |
|---|---|---|
Barebone model | Slim kit | |
Connector included | ||
Compatible with Windows version | Windows 10 |
Processor brand | Intel | |
|---|---|---|
Processor family | Core i5 vPro | |
Processor code name | Tiger Lake U | |
Processor cores | Quad-Core (4) | |
Threads | 8 |
Clock speed | 2,8 GHz | |
|---|---|---|
Overclockable | ||
Turbo speed | 4,4 GHz | |
Cache memory | 8 MB | |
Number of performance cores | 8 | |
Integrated graphics | ||
Type of integrated graphics | Intel Iris Xe Graphics |
Memory type | DDR4 | |
|---|---|---|
Total number of RAM slots | 2 | |
Maximum internal memory | 64 GB | |
Maximum memory speed | 3200 MHz | |
Voltage RAM | 1.2V |
Integrated video card | ||
|---|---|---|
Chipset brand | Intel | |
GPU chipset number | Intel Iris Xe Graphics |
Nubmber of M.2 connectors | 1 | |
|---|---|---|
Supported M.2 SSD formats | 22x80mm | |
M.2 SSD connector type | M |
Bluetooth | ||
|---|---|---|
Bluetooth version | 5.1 | |
Built-in WiFi | ||
WiFi standards | Wireless A (WiFi 2), Wireless AC (WiFi 5), Wireless AX (WiFi 6), Wireless B (WiFi 1), Wireless G (WiFi 3), Wireless N (WiFi 4) | |
Ethernet port | ||
Number of Ethernet ports | 1 | |
Number of 1Gb/s Ethernet ports | 1 |
HDMI connector | ||
|---|---|---|
Number of Female HDMI type A 2.0b connectors | 2 | |
DisplayPort connector | ||
Number of Female Standard DisplayPort 1.4a ports | 1 | |
Thunderbolt connector | ||
Number of Female Thunderbolt 4 (USB-C) ports | 1 | |
Number of Female Thunderbolt 3 (USB-C) ports | 1 |
USB-A ports front panel | ||
|---|---|---|
Total amount USB-A ports front panel | 2 | |
Amount of USB-A 3.2 Gen 1 (5 Gbps) ports front panel | 2 | |
USB-C ports front panel |
USB-A ports back panel | ||
|---|---|---|
Total number of USB-A ports back panel | 2 | |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 1 | |
Number of USB-A 2.0 (480Mbps) ports back panel | 1 | |
USB-C ports back panel | ||
Total number of USB-C ports back panel | 2 | |
Number of USB-C 4.0 (40Gbps) ports back panel | 2 |
Digital optical connector |
|---|
Width | 11,7 cm | |
|---|---|---|
Height | 3,7 cm | |
Depth | 11,2 cm | |
Color | Black | |
Material | Metal, Plastic |
