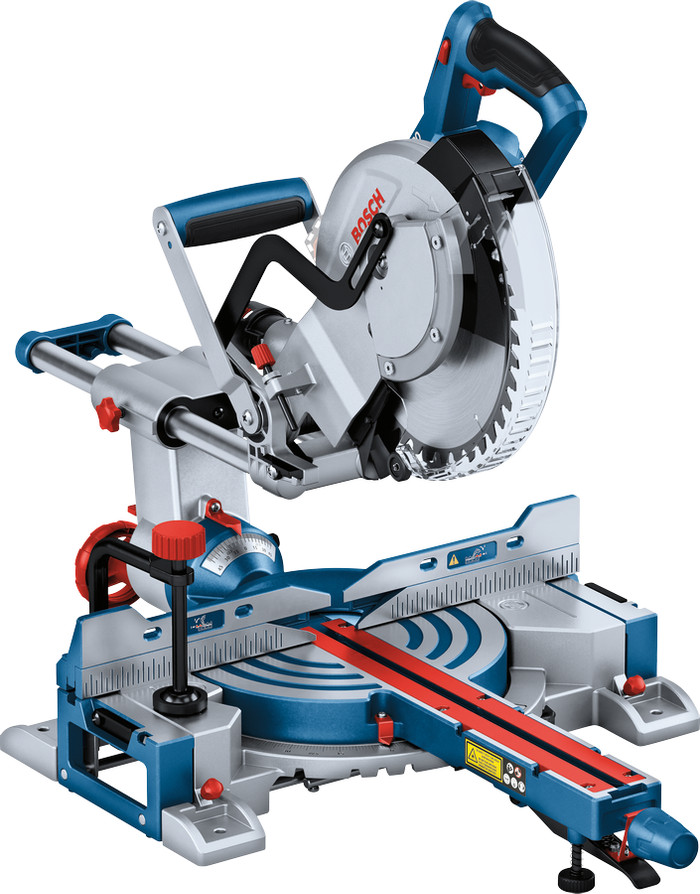

Bosch Professional GCM 18V-254 D (without battery)
Choose your radial arm saw:
254 mm
|
Nee
|
Nee
Choose your radial arm saw
Saw blade diameter
Including underframe
Number of batteries included
Product information
Pros and cons
According to our radial arm saw expert
- The radial arm saw works on a battery, so you don't have to hassle with cables or extension cords.
- Thanks to the table extension, your saw reach is larger and large workpieces remains in place.

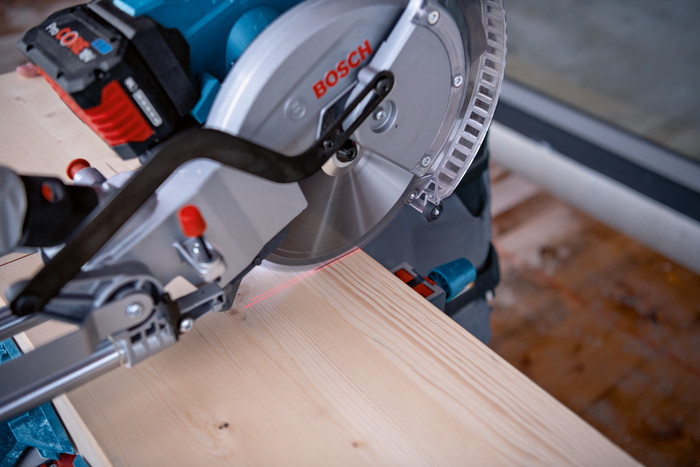

- With the laser guide, you always saw straight.
- Only 1 saw blade is included.
Description
Included by default
- Manual(7.10 MB)
- Saw blade wood
- Table extension
- Dust bag
Key specs
Saw blade diameter | 254 mm | |
Type of radial arm saw | Standard radial arm saw | |
Pull function | ||
Tiltable saw head | Tiltable to both sides | |
Cutting line indication | Laser guide | |
Maximum cutting depth 90° (straight) | 90 mm |
Suitable accessories
Similar and better products
Current product
Bosch Professional GCM 18V-254 D (without battery)
- Retail price€ 918,39€ 588,-
- Retail price€ 1.063,59€ 799,90
- Retail price€ 1.508,87€ 967,-
- Retail price€ 845,79€ 529,-
- € 849,-
254 mm
250 mm
305 mm
254 mm
260 mm
- Cutting line indication
Laser guide
Shadow line
Laser guide
Laser guide
Laser guide
90 mm
76 mm
105 mm
90 mm
91 mm
Yes
Yes
Yes
Yes
Yes
Specifications
Product
Product number | 950205 |
Manufacturer code | 0601B51100 |
Brand | Bosch Professional |
Warranty | 2 years |
Processing of your defect | Via Coolblue |
Radial arm saw functions
Type of radial arm saw | Standard radial arm saw | |
Speed | 4500 rpm | |
Pull function | ||
Table extension | ||
Softstart |
Miter functions
Tiltable saw head | Tiltable to both sides | |
Maximum saw blade incline left | 47 ° | |
Maximum saw blade incline right | 47 ° | |
Maximum cutting depth 90° (straight) | 90 mm | |
Maximum cutting depth 45° (slant) | 55 mm | |
Maximum cutting width 90° (straight) | 305 mm | |
Maximum cutting width 45° (slant) | 305 mm |
Cutting line indication
Conductor | ||
Cutting line indication | Laser guide | |
Power source conductor | Via main model |
Dust extraction
Connection for vacuum | ||
Type of dust extraction | Connection for vacuum , Dust bag/cup |
Power supply
Power supply type | Rechargeable battery | |
Required battery/battery voltage (device) | 18 V | |
Type of battery | Specific battery | |
Battery platform | Bosch Professional 18V system | |
Battery included | ||
Number of batteries included | 0 |
Saw blade properties
Saw blade diameter | 254 mm | |
Diameter arbor hole | 30 mm | |
Includes saw blade | ||
Suitable for (surface) | Hard wood , Laminate, MDF, Wood | |
Number of teeth (numerical) | 48 | |
Saw blade thickness (numerical) | 1,6 mm |
Physical properties
Weight | 17,7 kg | |
Height | 63,2 cm | |
Depth | 78,7 cm | |
Width | 50 cm |
