This is the one

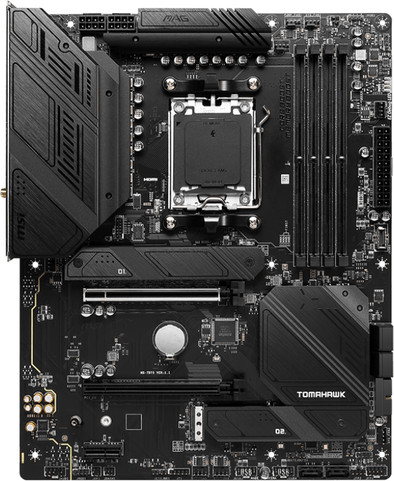

MSI MAG B650 TOMAHAWK WiFi
Retail price
€ 265,90€ 201,90
Delivered tomorrow
Retail price
€ 309,99€ 234,90
Delivered tomorrow
Current product
Â
Â
Retail price
€ 219,-€ 173,90
Retail price
€ 265,90€ 201,90
Retail price
€ 309,99€ 234,90
ATX
ATX
Mini-ITX
4
4
2
2
2
1
AMD AM5
AMD AM5
AMD AM5
According to our motherboard expert
Note: this motherboard only works with AMD Ryzen 7000 processors, with an AM5 socket. This motherboard also only works with DDR5 RAM.
Build your ultimate gaming PC with the MSI MAG B650 TOMAHAWK WiFi motherboard. This ATX motherboard has an AM5 socket and B650 chipset, which you can use with the AMD Ryzen 7000 processors. You can place up to 256GB DDR5 RAM on this motherboard via the 4 DIMM slots. Want fast storage in addition to great storage space? With the 3 M.2 slots, you can easily place multiple NVMe SSDs on the motherboard. Thanks to the WiFi 6E module and 2.5GBps Ethernet port, this motherboard provides a powerful and stable wired or wireless internet connection. This motherboard also has 10 USB ports on the back, one of them is a USB-C port. This allows you to connect all your gaming accessories. Want to monitor the performance? This motherboard has various software programs to cool and optimize your audio, for example. As a result, you can adjust all settings to your own liking.
Socket (CPU) | AMD AM5 | |
|---|---|---|
Motherboard chipset | AMD B650 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 3 | |
PCI Express x16 slots | 2 | |
Built-in WiFi | ||
Support for overclocking |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Coolblue takes care of everything, from taking out an insurance to repairs
For almost all accidents
More coverage in case of damage than your standard warranty
No deductible
First, add your motherboard to your shopping cart. On the next page, choose the Protection Plan below. You always have a 30-day return window and pay no deductible in case of damage.
2-year Protection Plan
€ 7,99
one-time3-year Protection Plan
€ 8,99
one-time
Product number | 917387 |
|---|---|
Manufacturer code | B650 TOMAHAWK WIFI |
Brand | MSI |
Warranty | 3 years |
Processing of your defect | Via Coolblue |
Compatible with Windows version | Windows 10, Windows 11 | |
|---|---|---|
Suitable casings | Full Tower, Mid Tower | |
Form factor (motherboards) | ATX |
Chipset brand | AMD | |
|---|---|---|
Motherboard chipset | AMD B650 | |
Socket (CPU) | AMD AM5 | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Memory type | DDR5 | |
Memory speed | 4800 MHz | |
Maximum memory speed | 7600 MHz | |
Maximum internal memory | 256 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 1 | |
|---|---|---|
Version PCIe x1 slots | PCIe 3.0 | |
PCI Express x16 slots | 2 | |
Number of PCIe 4.0 (x16/x16) connectors | 1 | |
Number of PCIe 4.0 (x16/x4) connectors | 1 |
Supported M.2 SSD formats | 22x80mm | |
|---|---|---|
Nubmber of M.2 connectors | 3 | |
Number of cooled M.2 SSD slots | 3 | |
Number of M-key (PCIe 4.0) slots | 3 | |
Number of SATA connectors | 6 |
Built-in WiFi | ||
|---|---|---|
WiFi standards | Wireless A (WiFi 2), Wireless AC (WiFi 5), Wireless AX (WiFi 6), Wireless AXE (WiFi 6E), Wireless B (WiFi 1), Wireless G (WiFi 3), Wireless N (WiFi 4) | |
Bluetooth | ||
Bluetooth version | 5.2 |
DisplayPort connector | |
|---|---|
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
DVI connector | |
VGA connector |
USB-C ports back panel | |
|---|---|
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 |
USB-A ports back panel | |
Number of USB-A 2.0 (480Mbps) ports back panel | 2 |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 4 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 3 |
Headphone jack | ||
|---|---|---|
Microphone connector | ||
Number of microphone connectors | 1 | |
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | ALC4080 |
Fan headers | |
|---|---|
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin system fan headers | 6 |
Number of 4-pin CPU water cooling fan headers | 1 |
Type of power connector for motherboard | 24-pin ATX connector |
Type of power connector for CPU | 8+8 pin ATX connector |
RGB headers | |
Number of RGB headers | 4 |
USB headers on the motherboard | |
Number of USB 2.0 (480Mbps) headers on the motherboard | 2 |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 1 |
BIOS flash button on the motherboard | |
|---|---|
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting | ||
|---|---|---|
Zones separately lit |
