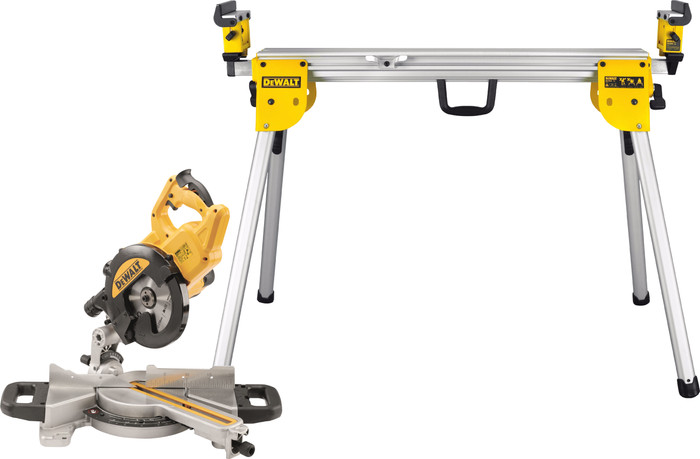

DEWALT DWS774-QS + DEWALT DE7033-XJ
Choose your radial arm saw:
216 mm
|
Yes
Choose your radial arm saw
Saw blade diameter
Including underframe
Choose your radial arm saw:
216 mm
|
Yes
Saw blade diameter
Including underframe
According to our radial arm saw expert
You can work at a comfortable height thanks to the included underframe.
With the shadow line, you always saw straight.
You can tilt the saw head, so you can easily saw miter.
The power cord is quite short at 2m, so you can't work far from the socket.
5 stars
91
4 stars
41
3 stars
1
2 stars
0
1 star
0
Accuracy
Dimensions
I bought this crosscut saw as a replacement for my Metabo KGS 216M. I wanted a crosscut saw that could cut wide pieces, but that didn't take up much space. Other crosscut saws in this price category have enormous sliding arms, which means that the saw is quickly about 70 cm deep: not ideal for the average workbench of 60 cm deep. And if you are looking for a compact crosscut saw, you will quickly find a device without a guide rail: so with a limited sawing width. This crosscut saw uses a smarter guide system, making it an incredibly compact device that doesn't get in the way quickly and can still cut up to 20 cm wide.
In addition, the saw is almost immediately ready for use, no hassle with assembling parts and above all: extremely accurate. Where my previous crosscut saw often lacked the necessary precision, this one is perfectly accurate.
The only downside I can find is the fact that not every vacuum hose can be connected to the saw. This requires a DeWalt Airlock connector. Not a disaster either, you can order these for a 10 euro. Would be perfect if this could be ordered.
Conclusion: are you looking for a compact, accurate saw for a good price? This is it.
Rens
13 February 2020
Automatically translated from Dutch
A good help with a hefty job
Jeroen
7 October 2017
Automatically translated from Dutch
A real relief to work with this machine. Previously a different type where I had to pick up my square again after every cut to properly set the saw to 90 degrees. With this Dewalt the greatest convenience and you do not have to worry about the accuracy.
Edwin Wilschut
10 May 2019
Automatically translated from Dutch
Register your DEWALT (garden) tools within 4 weeks after purchase via MyDEWALT and get 2 years of extra machine warranty. This is on top of the standard warranty from DEWALT. This means you'll have a total warranty of 3 years on your DEWALT product. View the promotional Terms and Conditions (PDF) for more information.
Current product
Retail price
€ 466,80€ 456,90
Retail price
€ 510,90€ 500,90
Retail price
€ 418,80€ 408,90
Product number | 792244 | |
|---|---|---|
Manufacturer code | DWS774-QS | |
Brand | DeWalt | |
Warranty | 2 years | |
Processing of your defect | Carry-in warranty |
Type of radial arm saw | Standard radial arm saw | |
|---|---|---|
Speed | 4500 rpm | |
Pull function | ||
Table extension | ||
Softstart |
Tiltable saw head | Tiltable to one side | |
|---|---|---|
Maximum saw blade incline left | 45 ° | |
Maximum cutting depth 45° (slant) | 48 mm | |
Maximum cutting width 45° (slant) | 190 mm |
Conductor | ||
|---|---|---|
Cutting line indication | Shadow line | |
Power source conductor | Via main model |
Connection for vacuum | ||
|---|---|---|
Type of dust extraction | Connection for vacuum |
Power supply type | Power grid | |
|---|---|---|
Cable length | 2 m | |
Connection voltage | 230 V | |
Power | 1400 W |
Includes saw blade | ||
|---|---|---|
Suitable for (surface) | MDF, Plastics, Wood | |
Number of teeth (numerical) | 24 | |
Saw blade thickness (numerical) | 2,2 mm |
Height | 40 cm | |
|---|---|---|
Depth | 45 cm | |
Width | 53 cm |
Product number | 792249 | |
|---|---|---|
Manufacturer code | DE7033-XJ | |
Brand | DeWalt | |
Warranty | 2 years | |
Processing of your defect | Carry-in warranty |
Underframe with wheels | ||
|---|---|---|
Table top working height | 81 cm | |
Worktop standard length | 109 cm | |
Worktop standard width | 30 cm | |
Carrying capacity | 227 kg | |
Weight | 14 kg |
