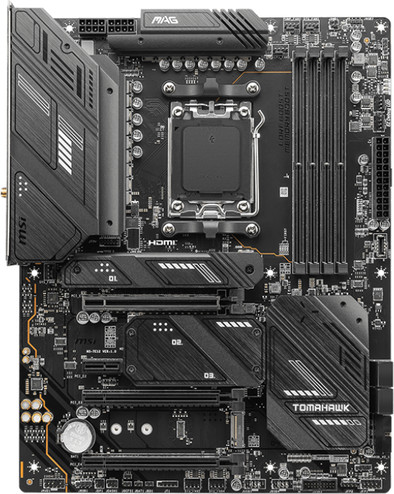

MSI MAG X670E TOMAHAWK WiFi
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
Product number | 949695 | |
|---|---|---|
Manufacturer code | 7E12-001R | |
Brand | MSI | |
Warranty | 2 years | |
Processing of your defect | Via Coolblue |
Compatible with Windows version | Windows 10, Windows 11 | |
|---|---|---|
Suitable casings | Full Tower, Mid Tower | |
Form factor (motherboards) | ATX |
Chipset brand | AMD | |
|---|---|---|
Motherboard chipset | AMD X670E | |
Socket (CPU) | AMD AM5 | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Memory type | DDR5 | |
Memory speed | 4800 MHz | |
Maximum memory speed | 7800 MHz | |
Maximum internal memory | 256 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 1 | |
|---|---|---|
Version PCIe x1 slots | PCIe 3.0 | |
PCI Express x16 slots | 3 | |
Number of PCIe 5.0 (x16/x16) connectors | 1 | |
Number of PCIe 4.0 (x16/x4) connectors | 1 |
Nubmber of M.2 connectors | 4 | |
|---|---|---|
Number of cooled M.2 SSD slots | 3 | |
Number of M-key (PCIe 5.0) slots | 1 | |
Number of M-key (PCIe 4.0) slots | 3 | |
Number of SATA connectors | 4 |
Built-in WiFi | ||
|---|---|---|
WiFi standards | Wireless A (WiFi 2), Wireless AC (WiFi 5), Wireless AX (WiFi 6), Wireless AXE (WiFi 6E), Wireless B (WiFi 1), Wireless G (WiFi 3), Wireless N (WiFi 4) | |
Bluetooth | ||
Bluetooth version | 5.3 |
DisplayPort connector | ||
|---|---|---|
Number of Female Standard DisplayPort 1.4 ports | 1 | |
HDMI connector | ||
Number of Female HDMI type A 2.1 ports | 1 | |
Thunderbolt connector | ||
DVI connector | ||
VGA connector |
USB-C ports back panel | ||
|---|---|---|
Number of USB-C 3.2 Gen 2 (10Gbps) ports back panel | 1 | |
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 | |
USB-A ports back panel | ||
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 4 | |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 2 |
Headphone jack | ||
|---|---|---|
Microphone connector | ||
Number of microphone connectors | 1 | |
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector |
Fan headers | ||
|---|---|---|
Number of 4-pin CPU fan headers | 1 | |
Number of 4-pin system fan headers | 6 | |
Number of 4-pin CPU water cooling fan headers | 1 | |
Type of power connector for motherboard | 24-pin ATX connector | |
Type of power connector for CPU | 8+8 pin ATX connector | |
RGB headers | ||
Number of RGB headers | 4 | |
USB headers on the motherboard | ||
Number of USB 2.0 (480Mbps) headers on the motherboard | 2 | |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 2 |
USB-A ports on the motherboard | 0 | |
|---|---|---|
BIOS flash button on the motherboard | ||
Clear CMOS button on the motherboard | ||
Power button on the motherboard |
RGB lighting | ||
|---|---|---|
Zones separately lit |
anything for a smile
Socket (CPU) | AMD AM5 | |
|---|---|---|
Motherboard chipset | AMD X670E | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 4 | |
PCI Express x16 slots | 3 | |
Built-in WiFi | ||
Support for overclocking |
According to our motherboard expert
You can install the AMD Ryzen 7000 processors in this motherboard thanks to the AM5 socket.
The MSI MAG X670E TOMAHAWK WIFI has room for 3 M.2 SSDs, so you can quickly create storage space.
You can monitor the performance of the motherboard via the various included software programs.
This socket isn't suitable for AMD processors older than the 7000 series.
Note: this motherboard only works with AMD Ryzen 7000 processors, with an AM5 socket. This motherboard also only works with DDR5 RAM.
Build your ultimate gaming PC with the MSI MAG X670E TOMAHAWK WiFi motherboard. This ATX motherboard has an AM5 socket and X670 chipset, which you can use with the AMD Ryzen 7000 processors. You can place up to 256GB DDR5 RAM on this motherboard via the 4 DIMM slots. Want fast storage in addition to great storage space? With the 4 M.2 slots, you can easily place multiple NVMe SSDs on the motherboard. One of these M.2 SSD slots has the PCIe 5.0 protocol for extra fast and future-proof power. Thanks to the WiFi 6E module and 2.5GBps Ethernet port, this motherboard provides a powerful and stable wired or wireless internet connection. This motherboard also has 8 USB ports on the back, of which 2 USB-C ports. This allows you to connect all your gaming accessories. Want to monitor the performance? This motherboard offers various software programs to cool and optimize your audio, for example. As a result, you can adjust all settings to your own liking.
5 stars
1
4 stars
3
3 stars
0
2 stars
0
1 star
0
Product is good, expo memory timings provide minutes of extra boot time everywhere.
Jasper
6 July 2024
Automatically translated from Nederlands
The MSI MAG X670E TOMAHAWK has enough storage expansion options so you will almost never run out of storage space, the motherboard also looks quite nice and uses the newer DDR5 memory and the BIOS version was also up to date. Building the PC with this motherboard went quite well, only the instructions were a bit unclear at some points, but in that case the internet is your best friend :)
Mike
2 September 2024
Automatically translated from Nederlands
After a little over a week of intensive use of the MSI MAG X670E TOMAHAWK WIFI with my new Zen 5 processor I am very satisfied. Despite being one of the cheaper X670E motherboards, it has similar features to many of the more expensive models. My system runs stable out of the box. Apart from a quick BIOS update to get it working with zen 5 and setting the ram speed, I have not had time to experiment with further overclocking or other adjustments. Definitely recommended for people looking for a more affordable X670E.
NB
12 September 2024
Automatically translated from Nederlands
