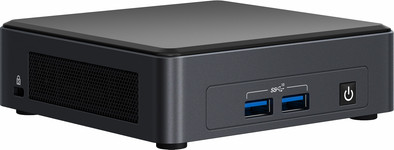

Intel NUC 11 Pro Kit i5 Tiger Canyon NUC11TNKI5
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
Product number | 922625 | |
|---|---|---|
Manufacturer code | BNUC11TNKI50002 | |
Brand | Intel | |
Warranty | 2 years | |
Processing of your defect | Via Coolblue |
Product family | Tiger Canyon | |
|---|---|---|
Barebone model | Slim kit | |
Connector included | ||
Compatible with Windows version | Windows 10 |
Processor brand | Intel | |
|---|---|---|
Processor family | Core i5 | |
Processor code name | Tiger Lake U | |
Processor cores | Quad-Core (4) | |
Threads | 8 |
Clock speed | 2,4 GHz | |
|---|---|---|
Overclockable | ||
Turbo speed | 4,2 GHz | |
Cache memory | 8 MB | |
Number of performance cores | 8 | |
Integrated graphics | ||
Type of integrated graphics | Intel Iris Xe Graphics |
Memory type | DDR4 | |
|---|---|---|
Total number of RAM slots | 2 | |
Maximum internal memory | 64 GB | |
Maximum memory speed | 3200 MHz | |
Voltage RAM | 1.2V |
Integrated video card | ||
|---|---|---|
Chipset brand | Intel | |
GPU chipset number | Intel Iris Xe Graphics |
Nubmber of M.2 connectors | 1 | |
|---|---|---|
M.2 SSD connector type | M |
Bluetooth | ||
|---|---|---|
Bluetooth version | 5.1 | |
Built-in WiFi | ||
WiFi standards | Wireless A (WiFi 2), Wireless AC (WiFi 5), Wireless AX (WiFi 6), Wireless B (WiFi 1), Wireless G (WiFi 3), Wireless N (WiFi 4) | |
Ethernet port | ||
Number of Ethernet ports | 1 | |
Number of 1Gb/s Ethernet ports | 1 |
HDMI connector | ||
|---|---|---|
Number of Female HDMI type A 2.0b connectors | 2 | |
DisplayPort connector | ||
Number of Female Standard DisplayPort 1.4a ports | 1 | |
Thunderbolt connector | ||
Number of Female Thunderbolt 3 (USB-C) ports | 2 |
USB-A ports front panel | ||
|---|---|---|
Total amount USB-A ports front panel | 2 | |
Amount of USB-A 3.2 Gen 1 (5 Gbps) ports front panel | 2 | |
USB-C ports front panel |
USB-A ports back panel | ||
|---|---|---|
Total number of USB-A ports back panel | 2 | |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 1 | |
Number of USB-A 2.0 (480Mbps) ports back panel | 1 | |
USB-C ports back panel | ||
Total number of USB-C ports back panel | 2 | |
Number of USB-C 4.0 (40Gbps) ports back panel | 2 |
Digital optical connector |
|---|
Width | 11,7 cm | |
|---|---|---|
Height | 3,7 cm | |
Depth | 11,2 cm | |
Color | Black | |
Material | Metal, Plastic |
anything for a smile
Product family | Tiger Canyon | |
|---|---|---|
Processor family | Core i5 | |
Barebone model | Slim kit | |
Built-in WiFi | ||
Memory type | DDR4 | |
Maximum internal memory | 64 GB | |
Nubmber of M.2 connectors | 1 | |
Number of HDMI connectors | 2 |
According to our barebone expert
With a barebone, you can choose your own RAM, storage, and other components.
You can easily mount the barebone behind your monitor thanks to the compact size, so you have a tidy desk.
This barebone supports up to 64GB of DDR4 RAM, which you create a powerful memory with.
If you want to get started with video editing, get a barebone with an Intel Core i7 processor.
This barebone doesn't have a WiFi module for wireless internet.
The Intel NUC 11 Pro Kit i5 Tiger Canyon NUC11TNKI5 is a barebone mini computer that's suitable for your daily work and photo editing. Think of writing reports in Microsoft Word or creating advertisements in Adobe Photoshop, for example. This computer has an 11th generation Intel Core i5 processor and offers space for 64GB RAM with a 3200MHz maximum clock speed. You have 2 M.2 SSD connectors for your storage space. So, your files and programs start within a few seconds and you can get started right away. Connect the mini PC with up to 4 screens at the same time via the HDMI or DisplayPort connectors. In addition, you have enough space for the dongles of a wireless mouse and keyboard via the 5 USB-A ports. Don't want the barebone on your desk? Mount it behind the monitor with a VESA mount. In addition, this barebone supports Windows 10 x64, Windows 10 IoT Enterprise, RedHat EL Linux, and Ubuntu 20.04 LTS.
5 stars
0
4 stars
1
3 stars
0
2 stars
0
1 star
0
For a while I was looking for a small PC with a low power consumption to virtualize some systems. That turns out to be fine. This NUC has no connections for sound, but that can easily be solved via USB. Previously had a defective NUC, but it was exchanged by Intel in no time, without being difficult. The support is therefore excellent for each other. Delivered quickly by Coolblue for a fair price. I'm happy with it!
Joost
4 June 2023
Automatically translated from Nederlands
