ACT USB-C Triple 4K Docking Station ac7048
This is the one
ACT USB-C Triple 4K Docking Station ac7048
According to our dock for laptops expert

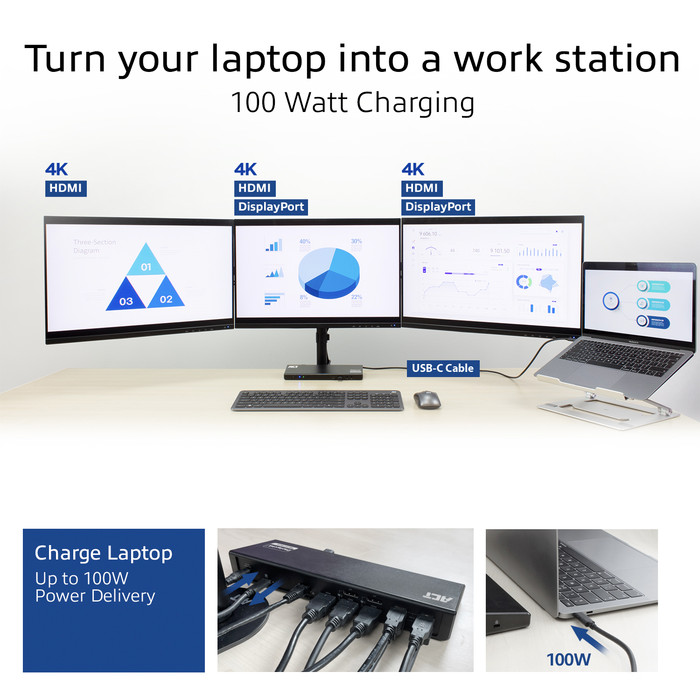

Turn your laptop into a productive workstation with the ACT USB-C Triple 4K Docking Station ac7048. WIth this docking station, you can expand your workplace with all your peripherals. Thanks to the DisplayLink technology, you can easily connect up to 3 monitors with a 4K resolution to your Windows laptop or MacBook. This way, you can open multiple windows at the same time on up to 4 screens in total. The ACT dock also has multiple USB-A ports for your mouse, keyboard, and external hard drive. You don't have to worry about an empty battery while you're working. The dock also charges your laptop, if it supports Power Delivery. The dock also has an Ethernet port for stable, wired internet. Do you have online meetings or want to listen to music while you work? Connect headphones and a microphone as well.
This docking station works with all Windows laptops and MacBook models with a USB-C port that transmit a video signal. This is how you check if your laptop has a suitable USB-C port.

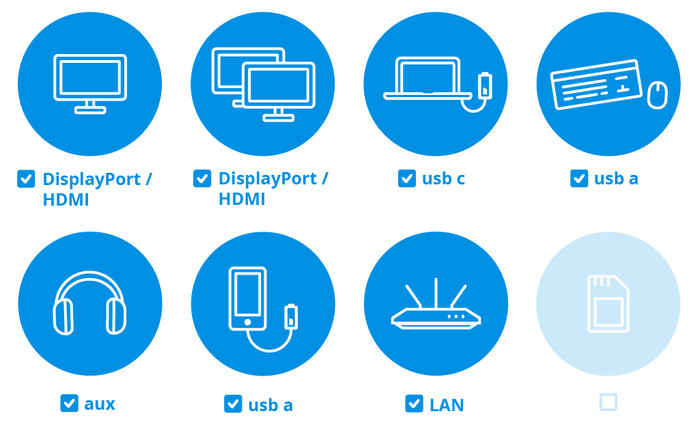

Extra functionalities docking station | Charge laptop via docking station, Charge laptop via own charger, Charge phone via docking station, Connect headphones, Connect wired network | |
Type of main connector | USB-C | |
Total available video outputs | 2x DisplayPort, 3x HDMI | |
Number of connectable monitors | 3 | |
Type of USB port | Standard USB-A, USB-C |
5 stars
5
4 stars
5
3 stars
0
2 stars
0
1 star
1
Price-quality ratio
Durability
Does what it's supposed to do without any hitches.
Mark
5 September 2023
Automatically translated from Dutch
Because I also like playing games on the laptop, I was very curious how this would work. To my surprise, the laptop's internal video card still works through the docking. Charging also works, but it indicates that it is charging slowly. Unfortunately, it is not possible to use your own power supply if you use the docking power supply. At least not with my laptop. Otherwise a great device, works quickly, many connections. Was a top choice.
Mark
6 September 2023
Automatically translated from Dutch
I had been looking for a docking station to make my (home) workplace more comfortable, so that I didn't have to fiddle with cables every morning/evening to get everything connected. The DisplayLink (driver downloadable separately) works fine, and all I have to do is move the USB-C cable from one device to the other.
Tim
10 December 2023
Automatically translated from Dutch
Current product
Â
Â
Â
Â
Retail price
€ 329,-€ 217,90
Retail price
€ 290,-€ 235,-
€ 175,-
Retail price
€ 320,11€ 185,-
Retail price
€ 255,-€ 201,95
Connect 1 monitor, Connect 2 monitors and MacBook, Connect 2 monitors and a Windows laptop
Connect 1 monitor, Connect 2 monitors and a Windows laptop
Connect 1 monitor, Connect 2 monitors and MacBook, Connect 2 monitors and a Windows laptop
Connect 1 monitor, Connect 2 monitors and MacBook, Connect 2 monitors and a Chromebook, Connect 2 monitors and a Windows laptop
Connect 1 monitor, Connect 2 monitors and a Chromebook, Connect 2 monitors and a Windows laptop
USB-C
USB-C
USB-A, USB-C
USB-C
USB-C
Charge laptop via docking station, Charge laptop via own charger, Charge phone via docking station, Connect headphones, Connect wired network
Charge laptop via docking station, Charge phone via docking station, Connect headphones, Connect wired network
Charge laptop via docking station, Charge phone via docking station, Connect headphones, Connect wired network
Charge laptop via docking station, Charge laptop via own charger, Charge phone via docking station, Connect headphones, Connect wired network
Charge laptop via docking station, Charge laptop via own charger, Charge phone via docking station, Connect wired network
3
1
2
2
1
Coolblue takes care of everything, from taking out an insurance to repairs
For almost all accidents
More coverage in case of damage than your standard warranty
No deductible
First, add your dock for laptops to your shopping cart. On the next page, choose the Protection Plan below. You always have a 30-day return window and pay no deductible in case of damage.
2-year Protection Plan
€ 13,99
one-time3-year Protection Plan
€ 22,99
one-time
Product number | 923293 |
Manufacturer code | AC7048 |
Brand | ACT |
Warranty | 2 years |
Processing of your defect | Via Coolblue |
Made for laptop models | Apple MacBook, Windows laptop |
Laptop docking station suitable for | Connect 1 monitor, Connect 2 monitors and MacBook, Connect 2 monitors and a Windows laptop | |
Extra functionalities docking station | Charge laptop via docking station, Charge laptop via own charger, Charge phone via docking station, Connect headphones, Connect wired network | |
Type of main connector | USB-C | |
Supported video technology on Docking Station | DisplayLink, MST, SST | |
Number of USB ports | 6 | |
USB function | Charge, Charging an external device, Data transfer, Device connection, Play media, Power source | |
Type of USB port | Standard USB-A, USB-C | |
Number of female standard USB-A ports | 5 | |
Female standard USB-A port version | 3.1 | |
Power standard USB-A port | 5 W | |
Amperage standard USB-A port | 1 A | |
Power second standard USB-A port | 5 W | |
Amperage second standard USB-A port | 1 A | |
Power third standard USB-A port | 5 W | |
Amperage third standard USB-A port | 1 A | |
Power fourth standard USB-A port | 5 W | |
Amperage fourth standard USB-A port | 1 A | |
Power fifth standard USB-A port | 7,5 W | |
Amperage fifth standard USB-A port | 1,5 A | |
Number of USB-C ports | 1 | |
Protocol Female USB-C port | USB, USB electricity | |
USB version Female USB-C port | 3.2 | |
Power USB-C port | 100 W | |
Amperage USB-C port | 5 A | |
Fast charging USB-C port | ||
Total available video outputs | 2x DisplayPort, 3x HDMI | |
Number of HDMI connectors | 3 | |
Female HDMI Type A port version | 2.1 | |
Number of Ethernet ports | 1 | |
Ethernet speed | Gigabit Ethernet (1000Mbps) | |
Type of DisplayPort connector | standard DisplayPort | |
Version Female Standard DisplayPort port | 2.0 | |
Number of headphone jacks | 1 | |
Type of headphone connection | 3.5mm (TRS) | |
Memory card reader | ||
Number of connectable monitors | 3 | |
Maximum image resolution 1 monitor | 4K (3840x2160) | |
Maximum refresh rate 1 monitor | 60 Hz | |
Maximum image resolution 2 monitors | 4K (3840x2160) | |
Maximum refresh rate of 2 monitors | 60 Hz | |
Maximum image resolution 3 monitors | 4K (3840x2160) | |
Maximum refresh rate 3 monitors | 60 Hz |
Color | Black |

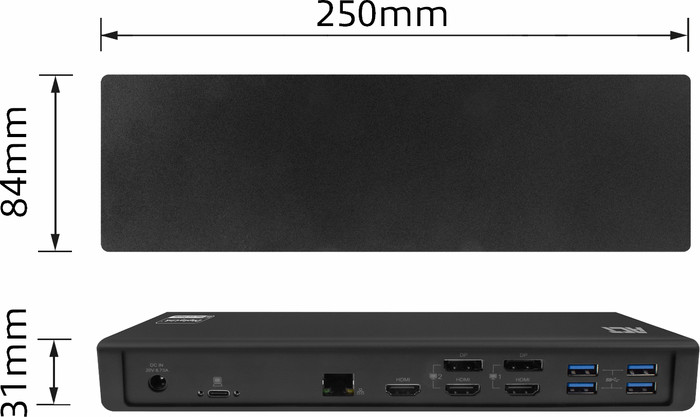

Height | 3,4 cm |
Width | 25 cm |
Depth | 8,5 cm |
Weight | 0,39 kg |
